KOSO D2 Multifunction Meter 2018-2024 Harley M8 Softail

KOSO D2 Multifunction Meter 2018-2024 Harley M8 Softail

D2 Streetbob HUD Gauge 18-24

  • 100% plug & play
  • 8-color changeable LCD display
  • Features tach and speedo combo
  • Programmable shift light
  • Gear indicator
  • Direct replacement for your `18-Up Street Bob
  • This gauge also features vital readings such as engine temperature, battery voltage, tire pressure and a complete system of indicator lights to monitor your bikes vital signs. This gauge will fit directly into the stock harness and works directly with your bikes CANBUS system.

Function:

  • Speedometer
    R: 0~199 km (0~124 mile) switchable
    U: 1 km (mile)
  • Display interval
    <0,5 second
  • Internal and external odometer
    R: 000,000 ~ 999,999 km (mile) returns to zero upon exceeding
    U: 0,1 km (mile)
  • Trip meter A,B
    R: 0,000,0 ~ 9,999,9 km (mile) returns to zero upon exceeding
    U: 0,1 km (mile)
  • Tire circumference
    R: 50 ~ 210 %
    U: 1 %
  • Tachometer
    R: 0 ~ 10,000 RPM
  • Backlight color
    R: white, red, orange, yellow, blue, light blue, purple, green
  • Mileage maintenance
    R: Off, 500 ~ 16,000 km (300 ~ 10,000 mile)
    U: 100 km (miles)
  • Indication light
    R: Right indication light (Green)Security light (Red) ABS light (Amber) Motor oil light (Red)Neutral light (Green) High beam light (Blue) Low fuel warning light (Amber) Left indication light (Green) Fog light (Green) Battery discharge light (Red) Engine light (Amber) Cruise light (Green/Amber)  Tire pressure warning light (Amber)
  • Shift light warning
    R: 2,000 ~ 10,000 RPM
    When it is higher than the setting value (including),
    the backlight will blink in re and white as a warning
    U: 100 RPM
  • Engine temperature
    R: -38 ~ 572 °F (-39 ~ 300 °C)
  • Clock
    R: 12 / 24 hour format
  • Voltmeter
    R: 8 ~ 18 V
  • Backlight brightness
    R: 1/5 (darkest) ~ 5/5 (brightest)
  • Meter weight
    Around 70g
  • Tire pressure
    (TPMS, FR/RR/LR shall be displayed when the vehicle supports TPMS)
    R:    —, HI, 0 ~ 73 PSI, 0~506 kPa, 0,0~5,0 ba
    U: 1 PSI, 1 kPa, 0,1 bar
  • Fuel Meter
    R: 10 levels
  • Operating voltage
    DC 12 V
  • Operating temperature
    -20 ~ 85 °C
  • Storage temperature
    -30 ~ 90 °C
  • Specifications
    JIS D 0203 (S2)

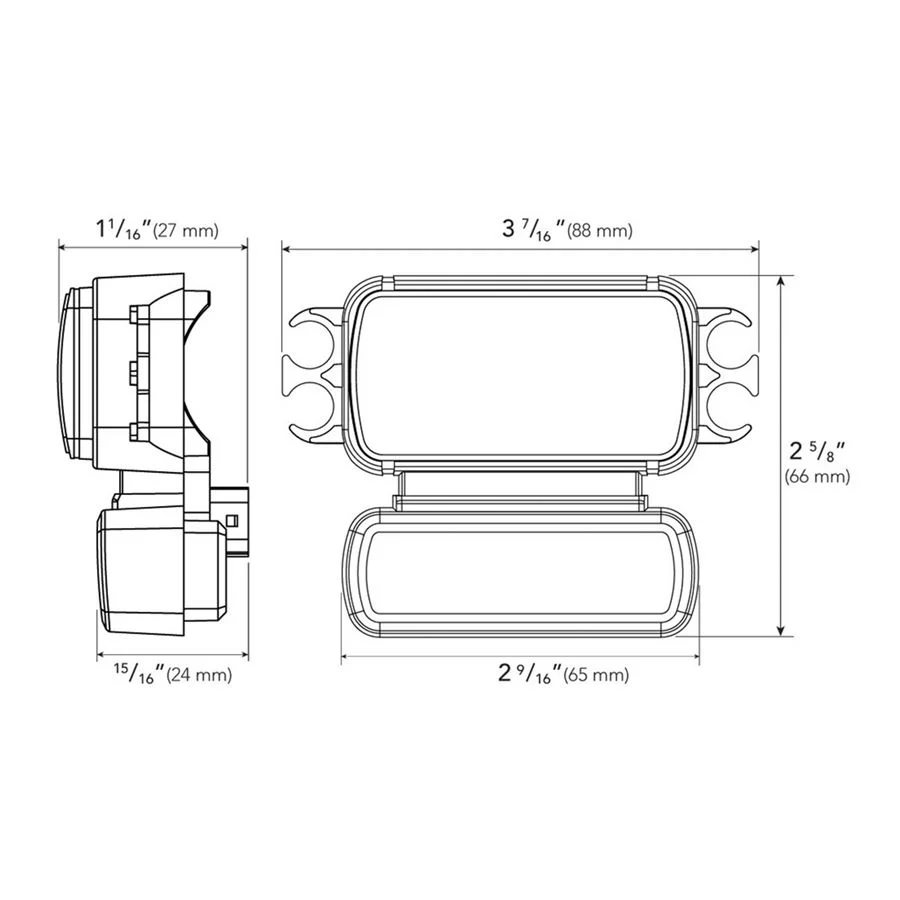

  • Meter size
    88,2 x 67,0 x 35,2 mm
$276.95
