SP Concepts Exhaust System for 1996-2016 Harley-Davidson Touring

SP Concepts Exhaust System for 1996-2016 Harley-Davidson Touring

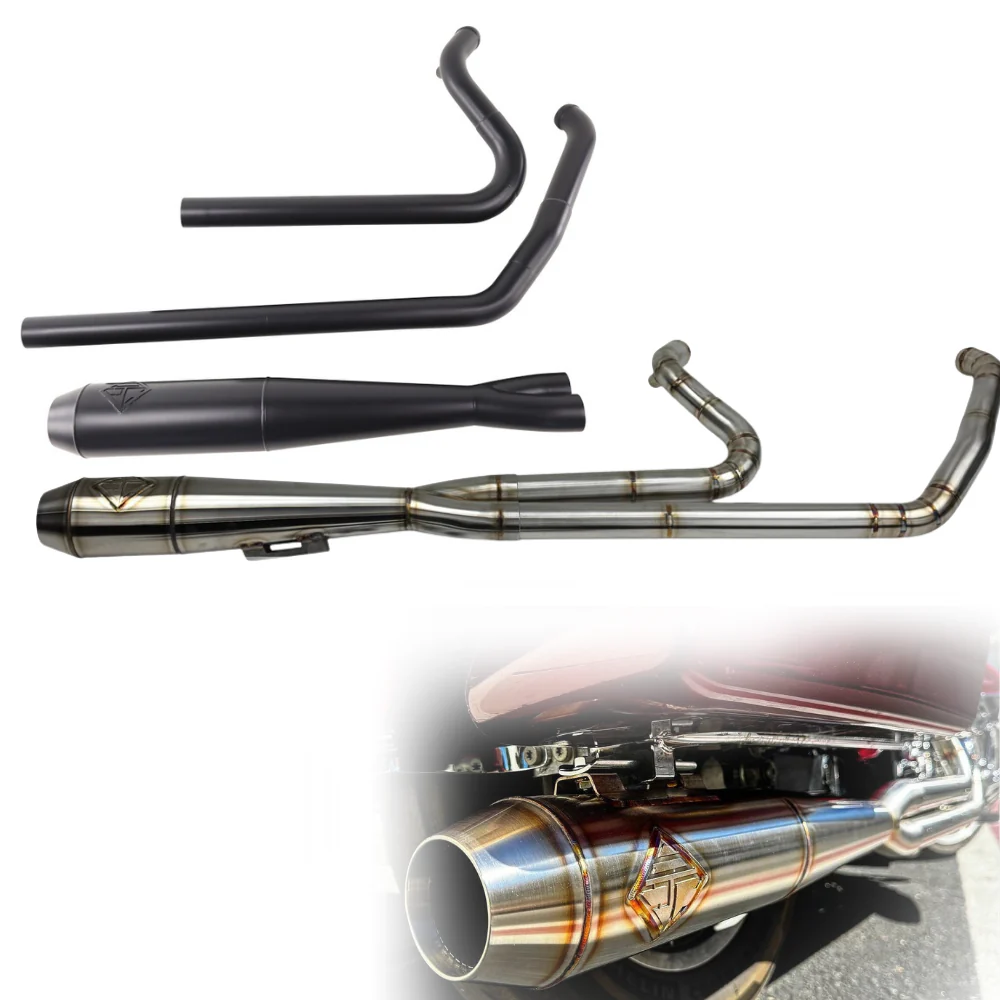

SP Concepts is known for these high-and-tight 2-into-1 full exhaust systems developed for Harley-Davidson Touring motorcycles. Like most 2-into-1 pipes, performance is key. With differently-staged stepped head pipes and different mufflers and cores selected to match the head pipes, SP systems promote exhaust velocity by sweating the details.

• Full stainless steel construction
• TIG-welded
• Header collars are machined of stainless steel
• Accepts 12mm or 18mm oxygen sensors; adapters included

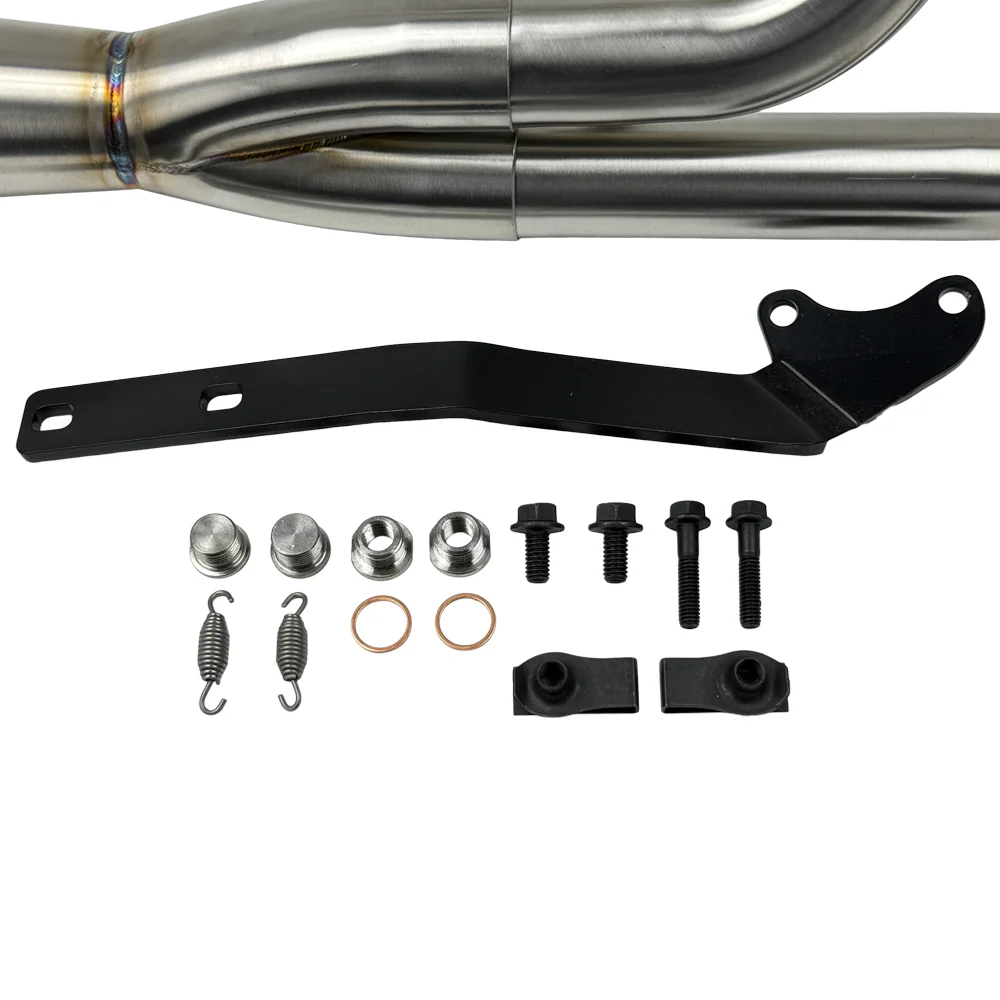

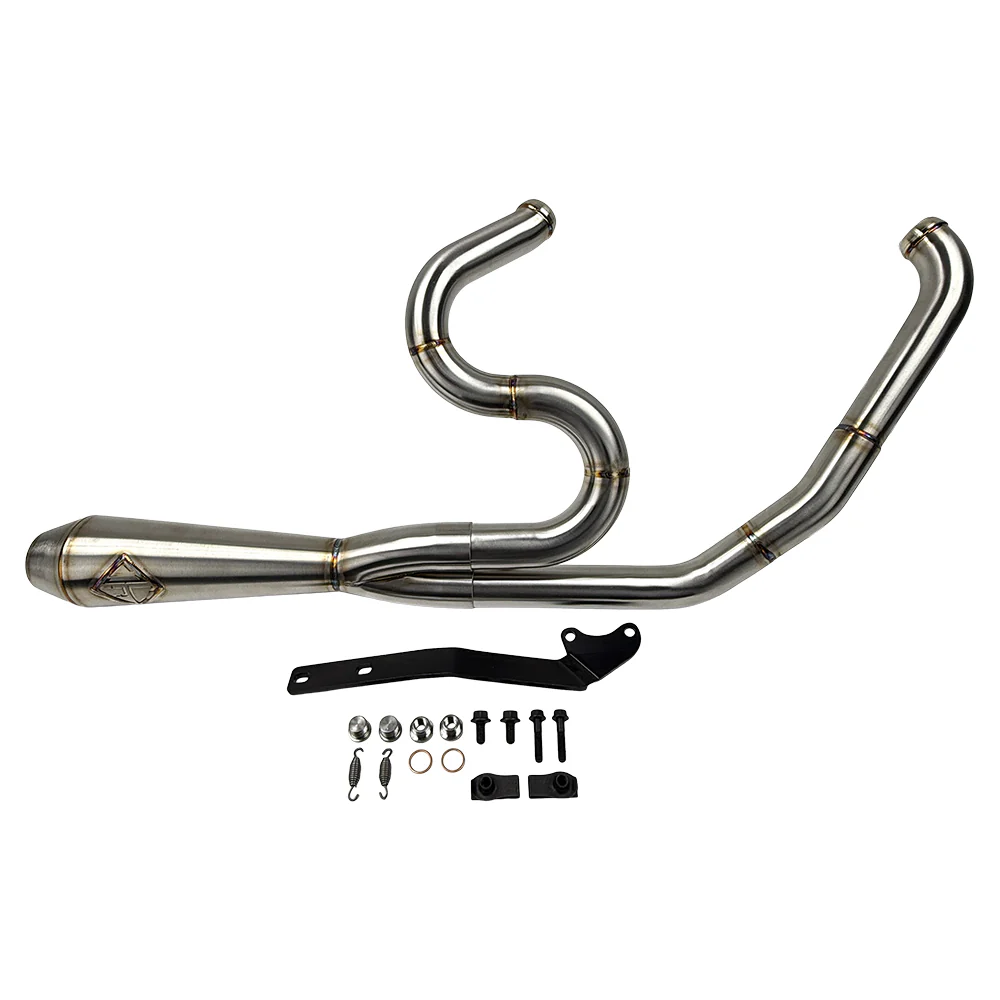

• Hardware kit includes mount bracket, bolts, speed nuts, and adapters

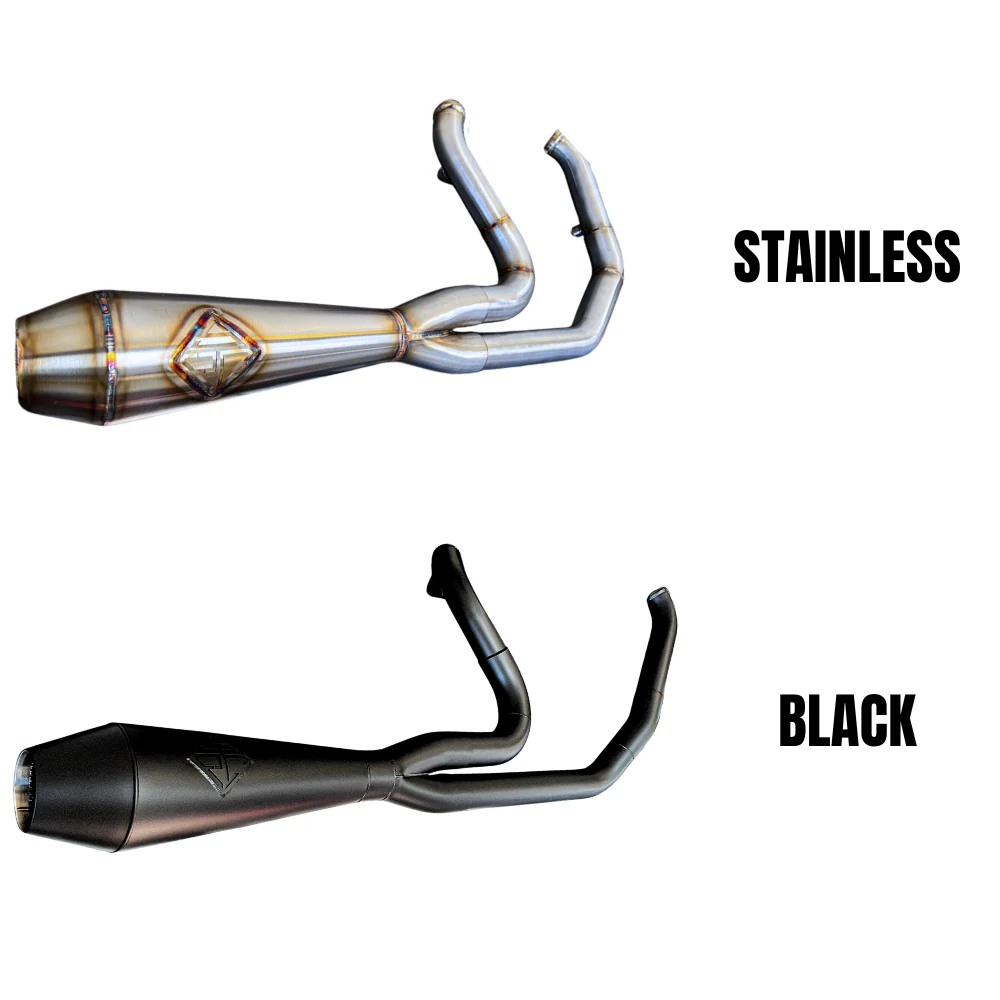

• Choose your finish

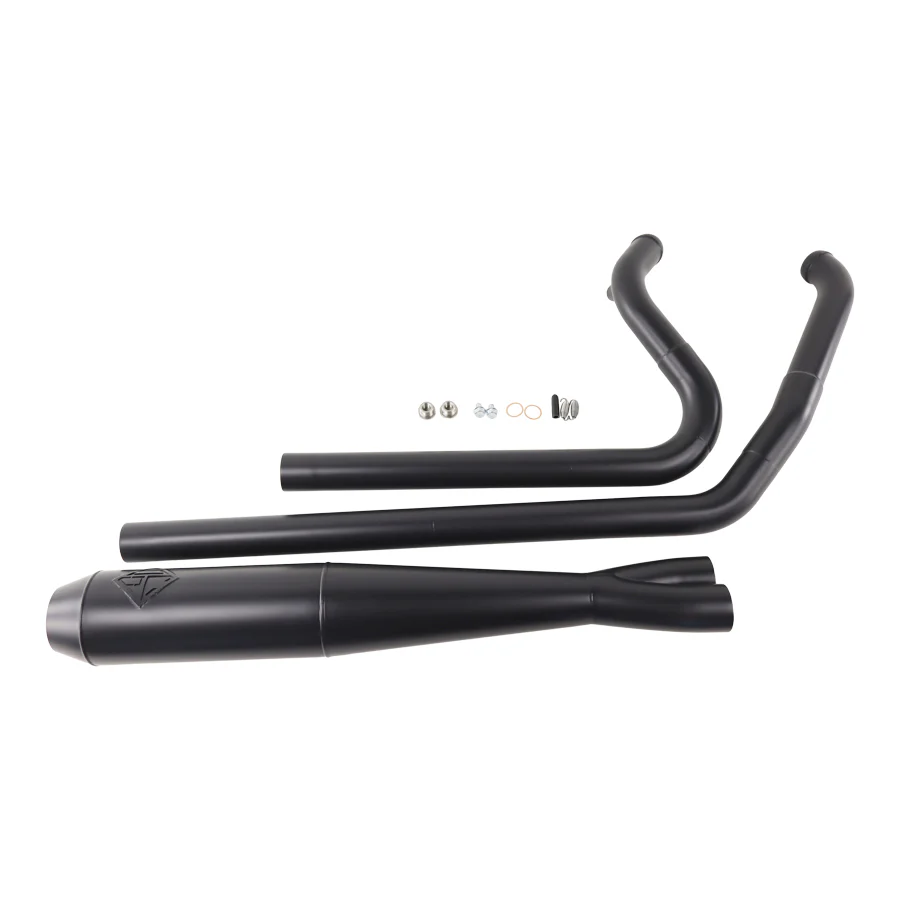

  • Black—satin black high temperature ceramic exhaust coating
  • Stainless—brushed and uncoated; will turn varying shades of gold with exposure to the heat of engine exhaust

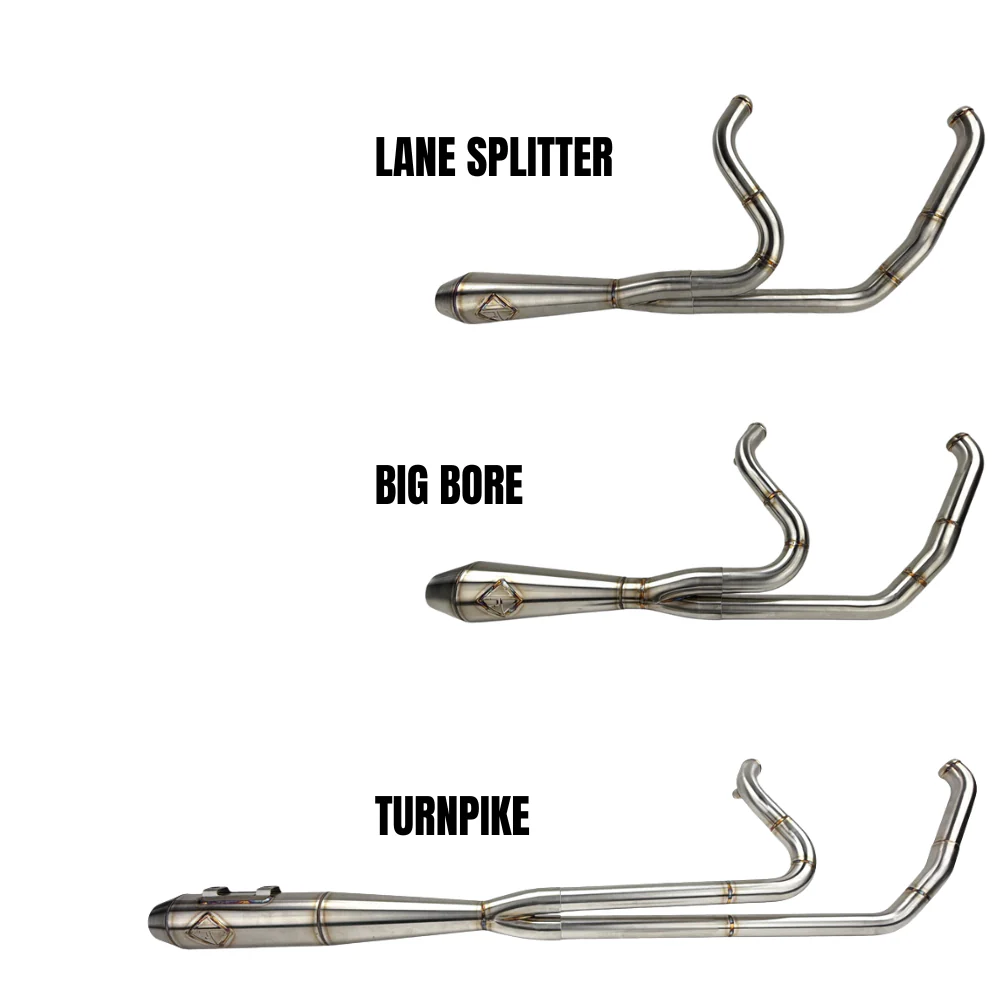

• Choose your system length
  • Lane Splitter
    • 4" rolled cone muffler with 2 1/4" perforated baffle for lots of torque and maximum volume that's often described as the "raspy" pipe in the SP lineup
    • .065" stainless steel head pipes step up from 1 3/4" to 1 7/8" and enter the muffler through a final 2" stepped section
    • A solid choice for unmodified engines or engines with light bolt-on power-adders
    • Shortest exhaust overall length; lots of bark as a result

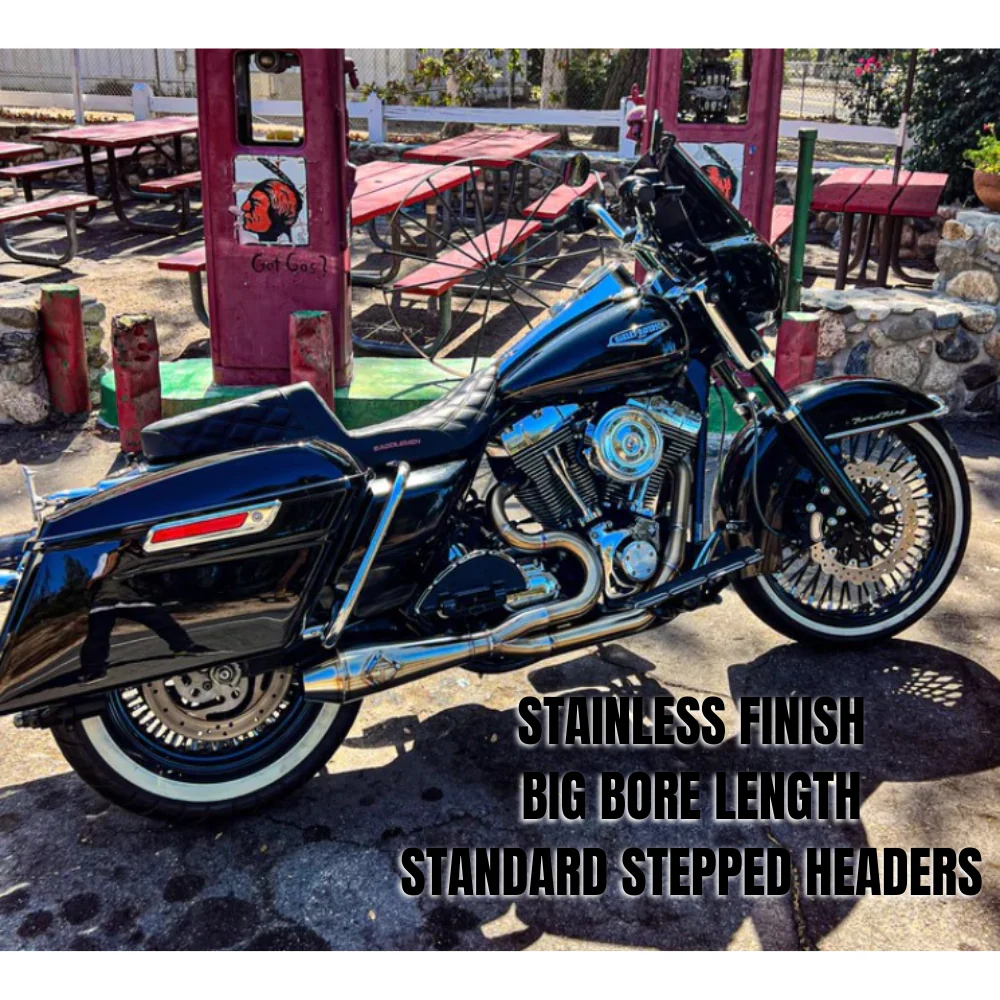

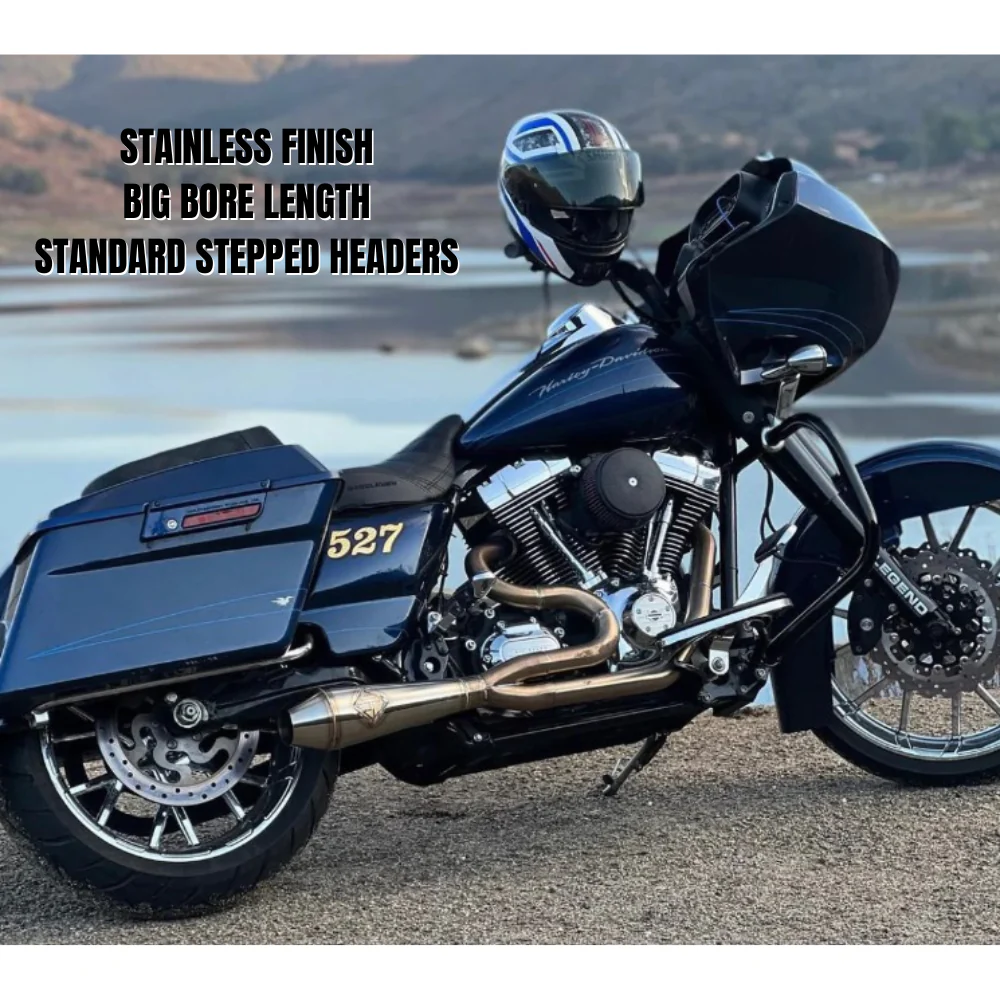

  • Big Bore
    • 4 1/2" rolled cone muffler with stepped 2 1/4" to 2 1/2" perforated baffle supports the high exhaust flow of large-displacement engines

    • Best choice for highly-modified engines
    • Shortest exhaust overall length and loudest exhaust; higher compression ratios and increased displacement will both affect sound

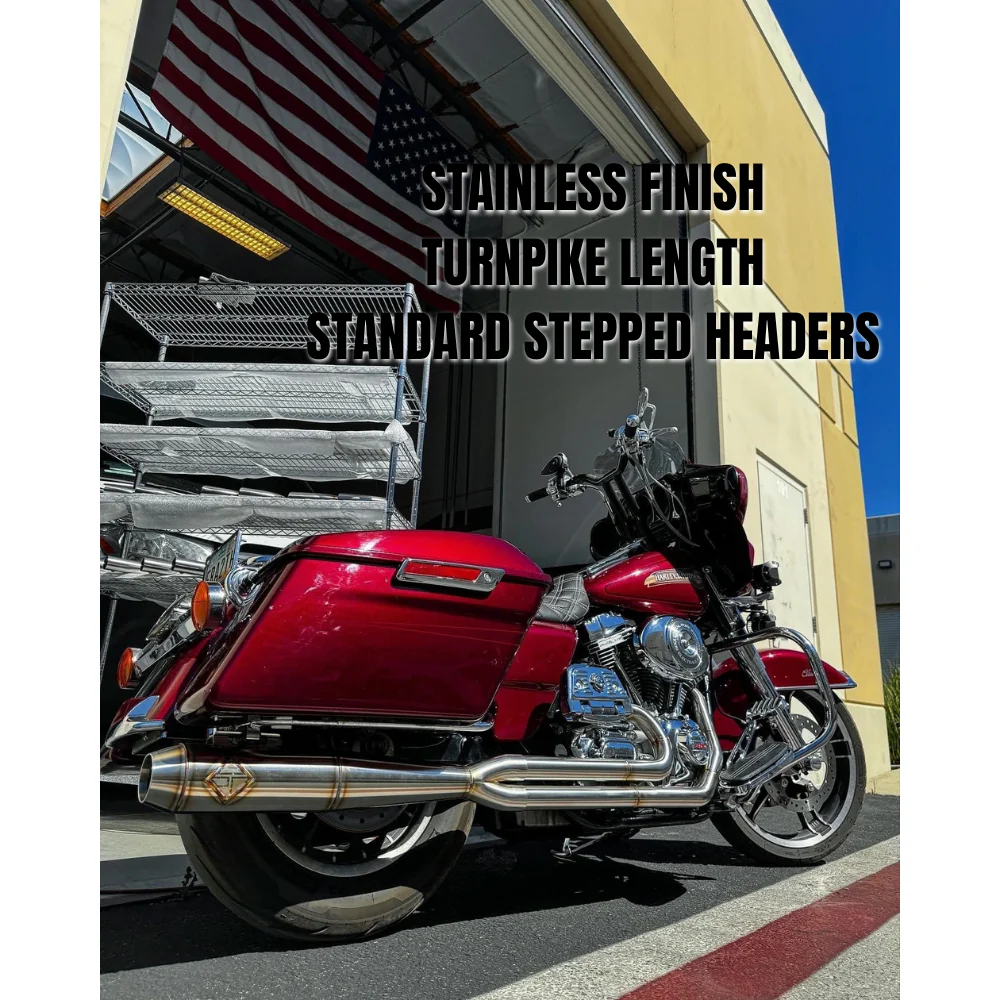

  • Turnpike
    • 4" rolled cone muffler with 2 1/2" performance-core perforated baffle for lots of torque, and full, deep tone
    • Full-length exhaust system provides the mellowest tone and most neighbor-friendly volume, but make no mistake—everyone will still hear you coming
    • A great choice for full-dress machines so the bags don't get sooty
• Choose your header style
  • Standard Stepped
    • .065" stainless steel head pipes step up from 1 3/4" to 1 7/8" and enter the muffler through 2" sections
  • Works Edition
    • The same construction materials and design as the Standard header, but bends are created from pie-cut sections that have been hand-TIG-welded for the competition look
  • Pro Flo
    • Anti-reversion chambers are visually stunning and highly effective

    • Dyno-proven
    • Reversion can occur when the downward stroke of the piston creates vacuum, causing exhaust pulses to be pulled in the wrong direction; this can be especially problematic with aftermarket cams that have lots of overlap

No matter what system you choose, SP pipes also shed weight when you remove your factory exhaust. And of course, the appearance is really a showstopper. People will stop to look at—and hear—your motorcycle.

The exhaust will accept either 12mm or 18mm oxygen sensors; adapters are included so you can use either OE or aftermarket sensors as required by your tuning setup. Plugs are also included should you have a carbureted motorcycle that doesn't use lambda sensors. The mounting bracket and hardware are included. Exhaust spring clips are not included; they can be purchased separately.  Exhaust gaskets are not included and should be replaced every time an exhaust system is removed; they also can be purchased separately.

When picking an exhaust type, let your modifications be your guide. If you're going to stick mostly with bolt-on engine upgrades to stock engine internals, the Turnpike or Lane Splitter are the correct exhausts to select. If you're considering aggressive head work, a radical camshaft, or big increases in bore or stroke, you may want to consider the Big Bore instead. On the fence? Definitely err on small side.
