TC Bros. Stainless Steel Axle Kit
TC Bros. Stainless Steel Axle Kit
While the axle isn't a part of a chopper most people will pick out and admire, it is a really important part of any motorcycle build.
- Premium alternative to using stock Sportster axles
- Specifically constructed for compatibility with TC Bros. hardtails for 1982-2003 Harley-Davidson Sportster
- Constructed from 17-4 PH stainless steel for the ultimate combination of strength and corrosion resistance
- Choice of axle length to correspond with the hardtail kit you're installing
- CNC-machined and centerless ground for precision fit to wheel bearings
- Yield strength of 118,000 psi offers more than twice the strength of 1018 cold rolled steel
- Dimensions
- 3/4" OD
- 5/8"-18 UNF thread
- Standard Width (130mm-150mm tire) Axle
- 11-7/8" overall length,
- 10-2/10" between shoulders
- Wide (180mm-200mm tire) Axle
- 14-1/2" overall length
- 12-9/10" between shoulders

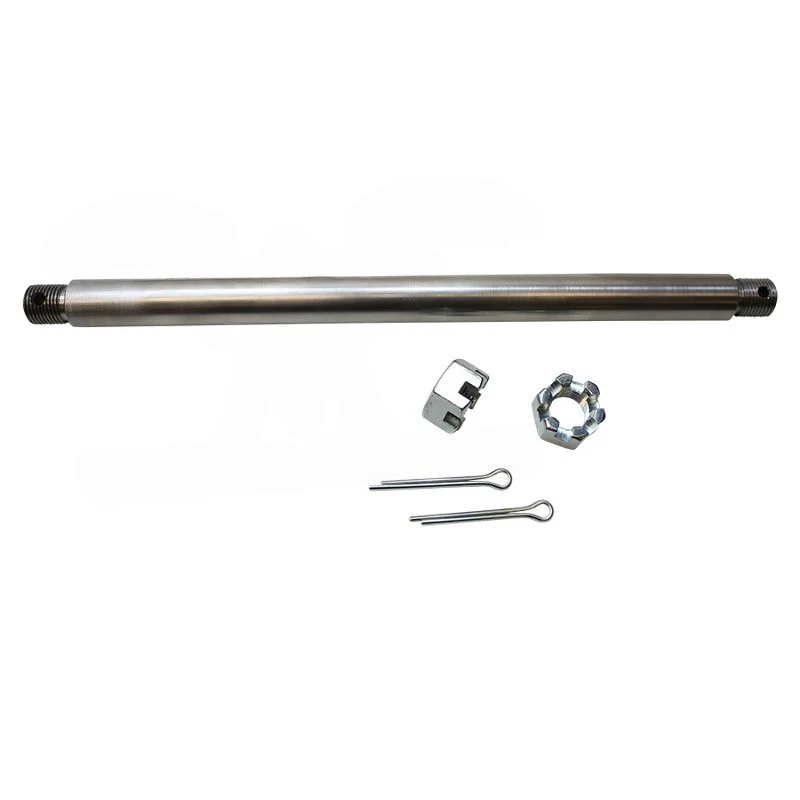

- Kit includes 1 axle, 2 zinc-plated steel castellated nuts, and 2 zinc-plated steel cotter pins
If you're starting a project, your axle will serve many important functions. Yes, it's where the wheel lives, but it's also needed in the early stages of a build for checking chain line, mounting the fender, and even just moving your project out of the way so you can get the mower out of the garage.
Don't start out with a clapped-out piece that some other goober was beating on when it was time to mount a new tire—build your hardtail on a solid foundation.
