TC Bros. Weld-On Solo Seat Spring Mounts
TC Bros. Weld-On Solo Seat Spring Mounts
Traditional hinged solo seats should be positively retained at the rear of the bike so the springs stay captive.
- CNC-machined
- 1018 cold-rolled steel
- Ready to weld on
- Pin-type retainer post is 3/8" diameter; fits most common seat springs
- Lock nut-type retainer stud is stainless 5/16"-18 thread; fits most common seat springs

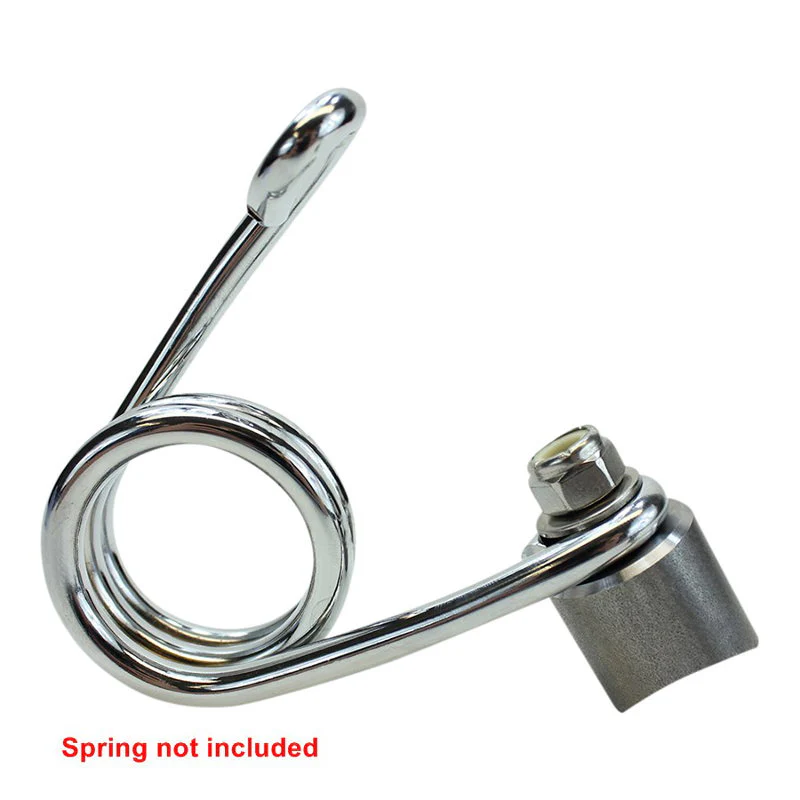

- Lock nut-type retainer recommended for use with torsion (hairpin) springs
- Base is 1" diameter with a 1 1/8" radius coped into the mount; can be used with 1" and 1 1/4" cross tubes with light fabrication
- Made in USA

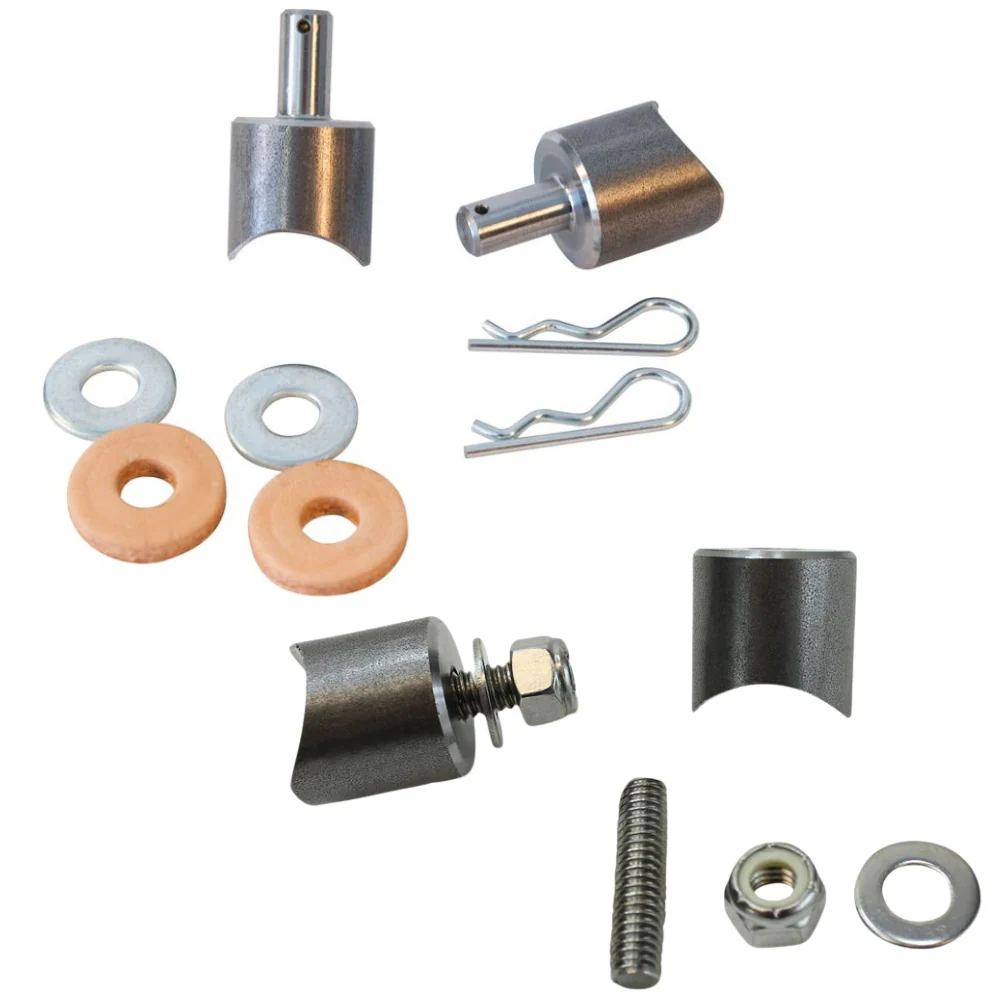

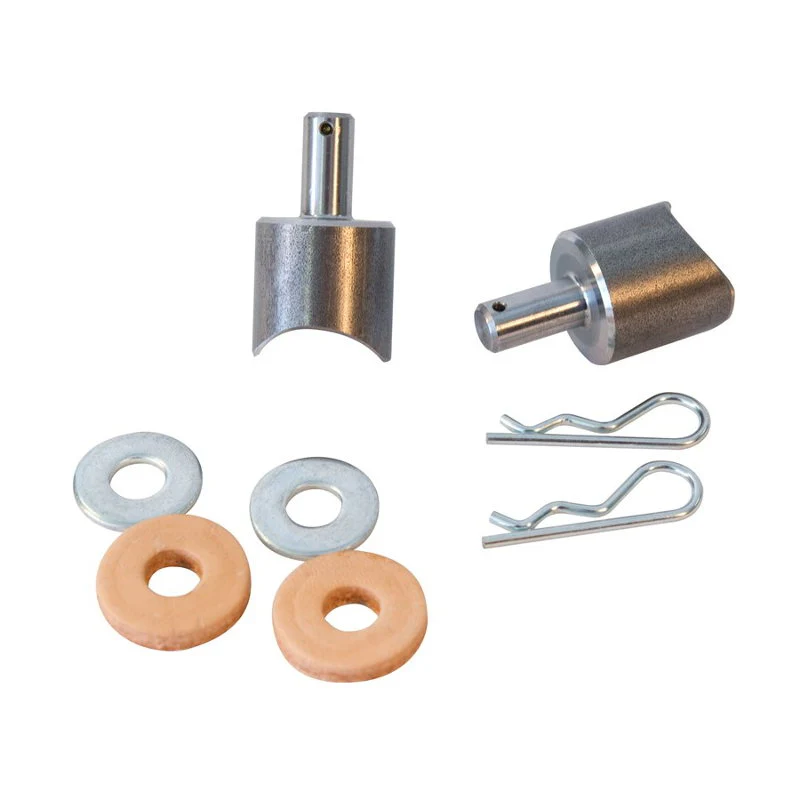

These studs are the surefire way to make sure your seat doesn't go flying up after you hit a great big pothole. Pin-type retainer kits include mounts, a pair of R-clips, steel washers, and leather cushions to keep your springs quiet and protect your paint. Lock nut-type retainer kits include a pair of stainless steel washers, a pair of stainless steel studs, and two threaded nylon insert locking nuts. These make a great addition to our front seat pivot to securely mount a set for nearly any application.
