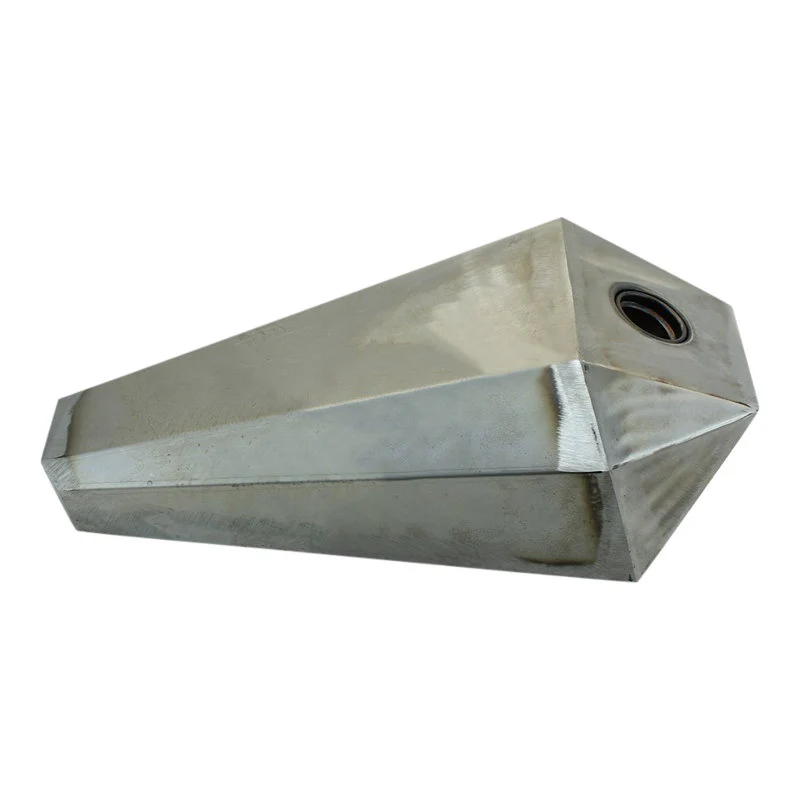

Wyatt Gatling 2.1 Gallon Flat Prism Fuel Tank
Wyatt Gatling 2.1 Gallon Flat Prism Fuel Tank
Looking for something a little different than a Sportster peanut tank? Tryna catch those '70s vibes? This tank, a cross between a coffin and a prism, checks the boxes.

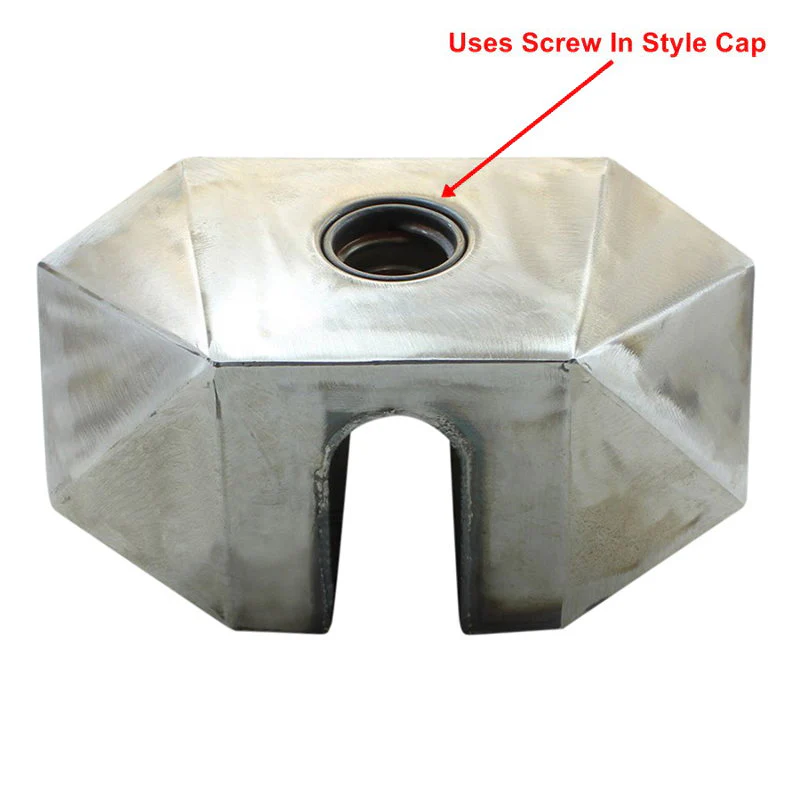

Tank uses screw-in style Harley gas cap
Threaded bung accepts 1/4" petcock
- Top length 20" and bottom length 16-3/4"
- 11-1/2" W at the front tapering to 5-1/2" at the rear
- 7-9/16" H at the front tapering to 2-1/2" at the rear

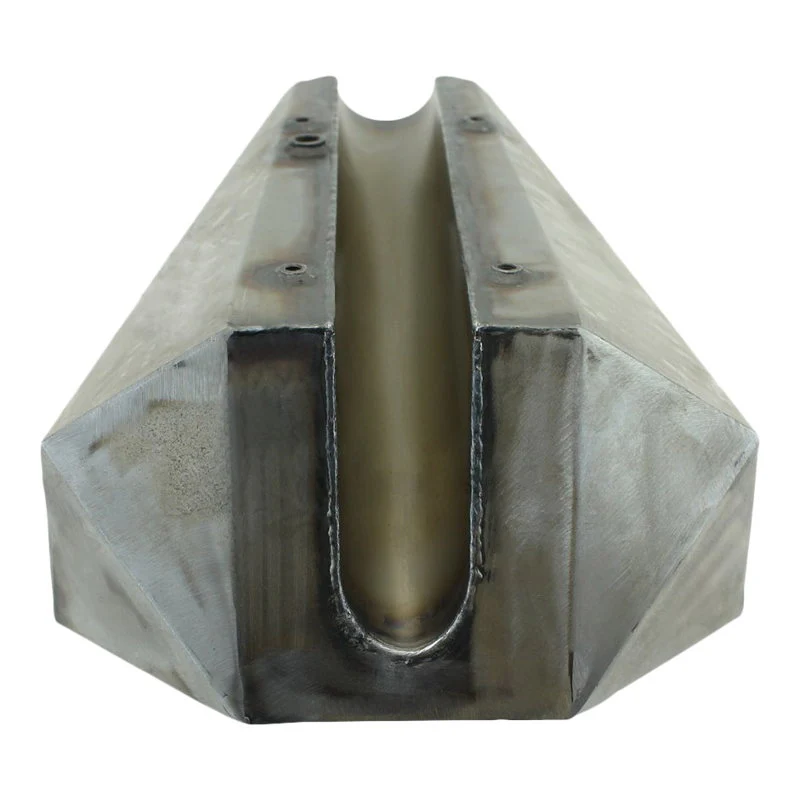

- Tunnel Height: slopes from 3-7/8" at the front to 1" at the rear
- Tunnel is 19" long

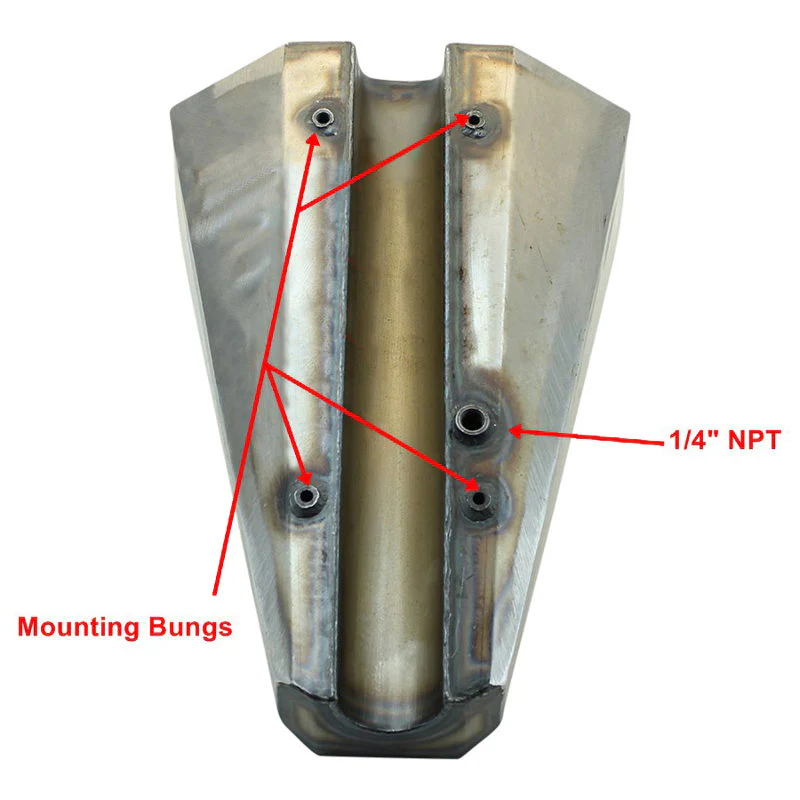

- Four integrated bungs welded to the underside of the tank permit strap-style underslung mounting to the bike's backbone
Though these tanks are pressure tested from the factory, pressure testing before applying filler or paint is standard practice. If needed, you may elect to seal with a tank sealer before painting. For the same reason, we encourage thorough, solid mounting—stress on the tank or mounting hardware will eventually lead to cracks.
