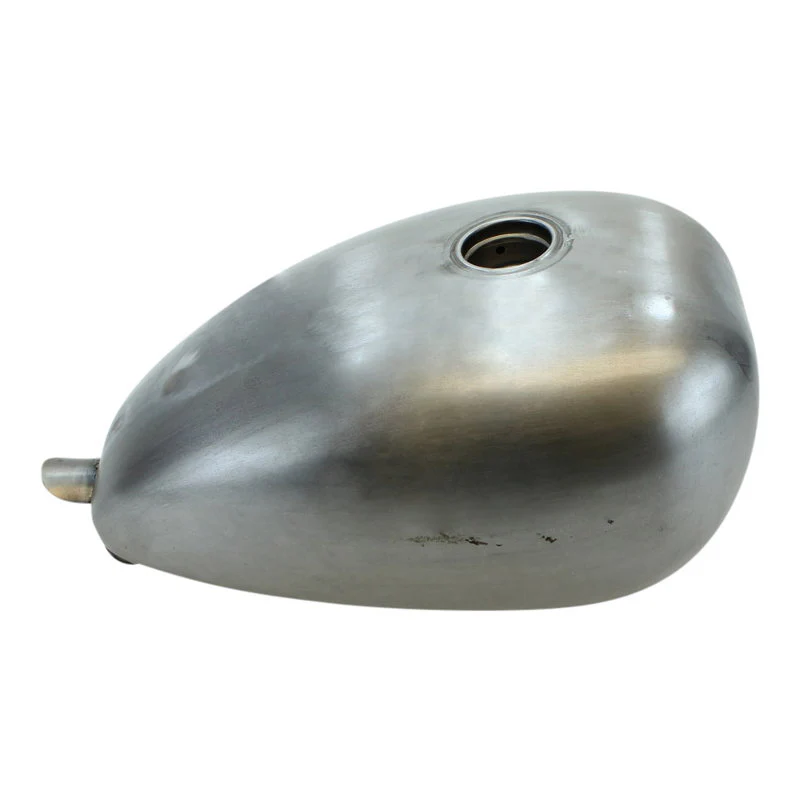

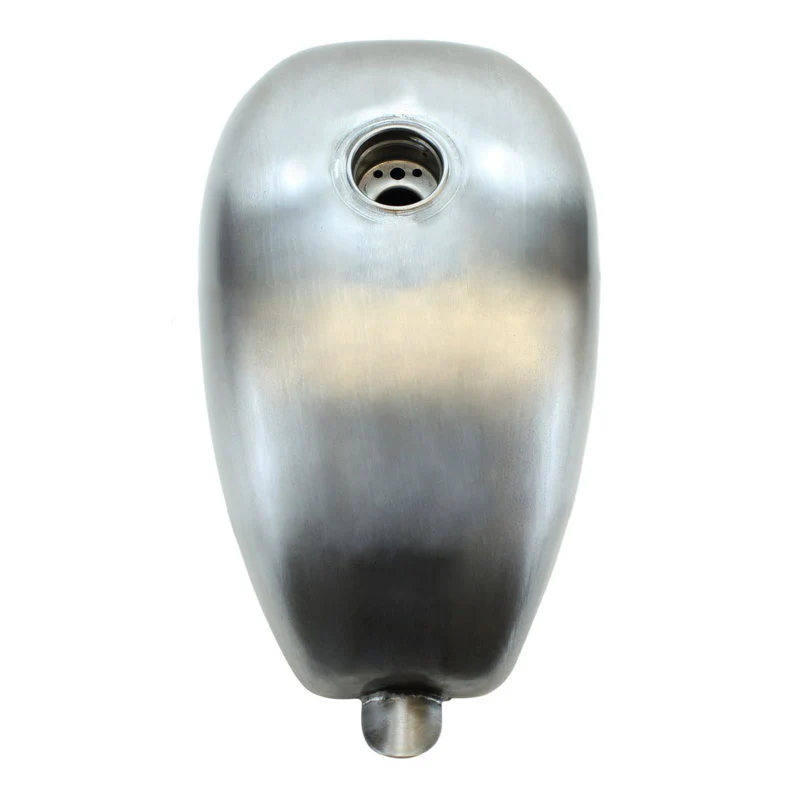

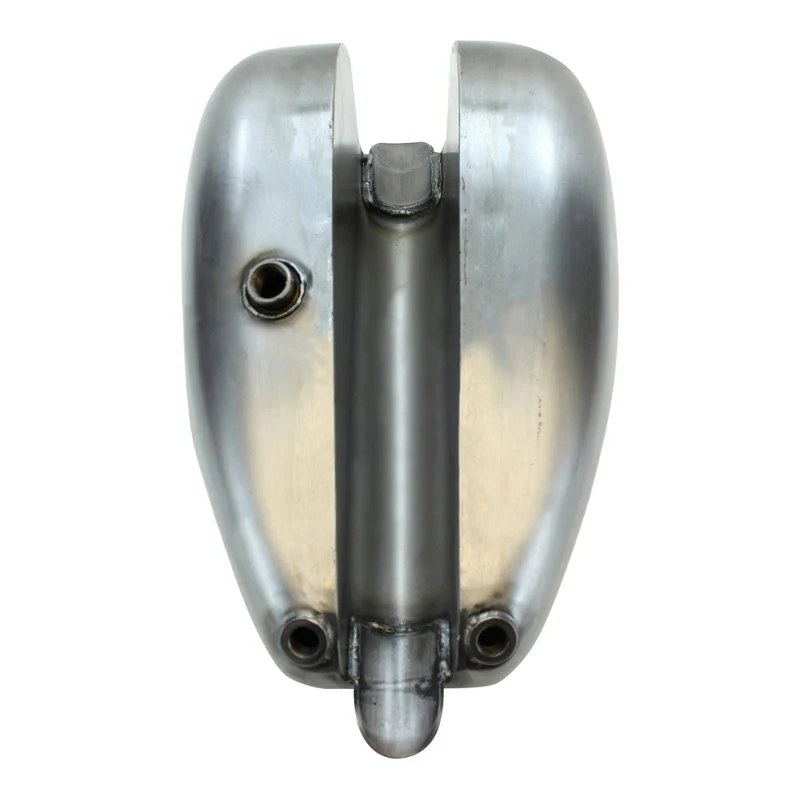

Mid-USA 2 Gallon Wassell-Style Peanut Gas Tank

Mid-USA 2 Gallon Wassell-Style Peanut Gas Tank

• Skip the swap meet tanks and get the look without the headaches
• 2 gallon capacity
• Pressure-tested

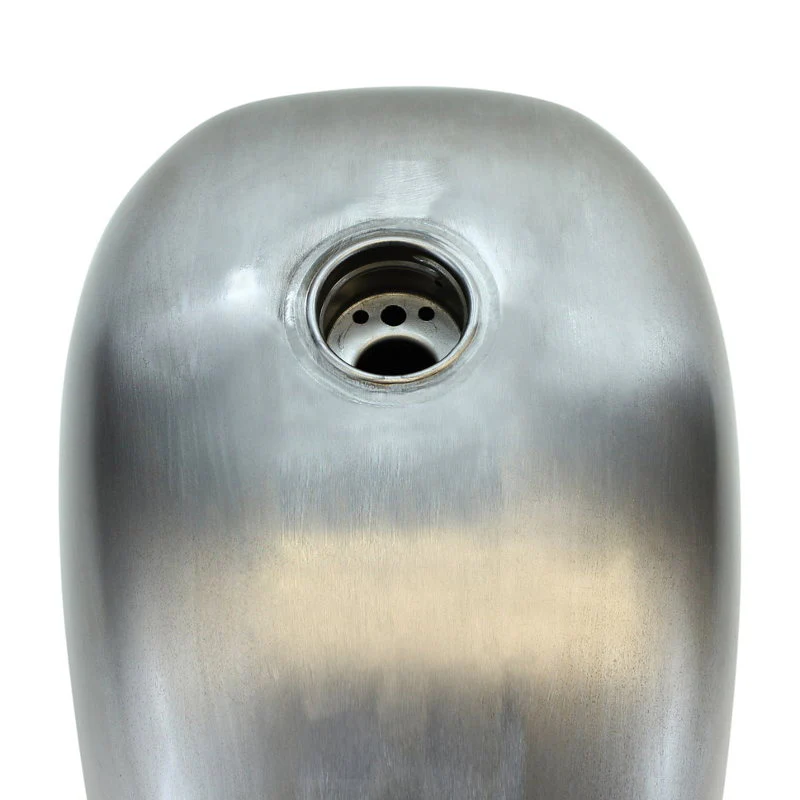

• Accepts screw-in-style fuel cap; not included
  • Bike requires one vented and one unvented cap

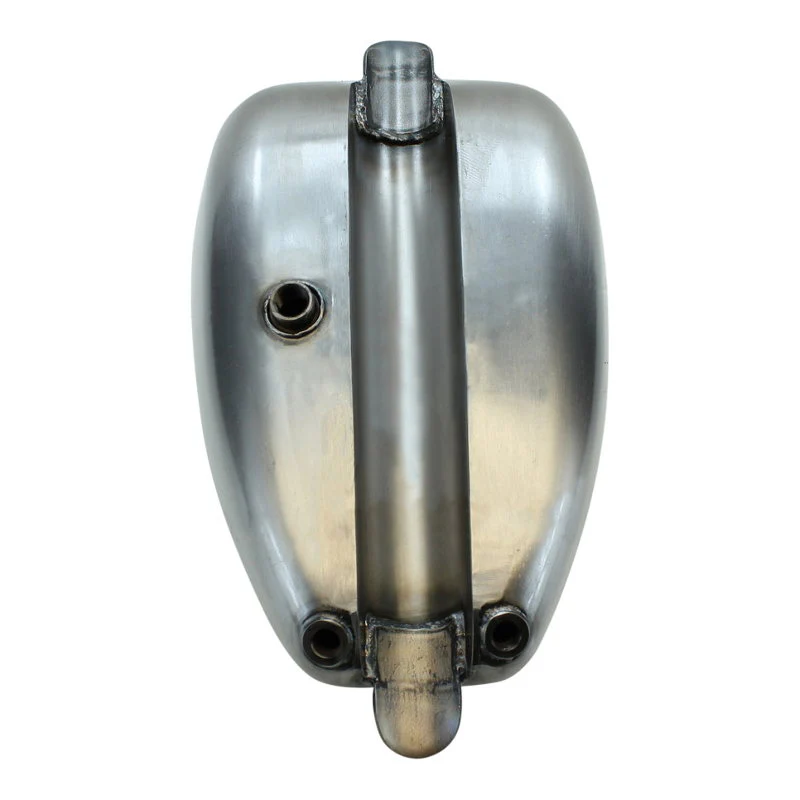

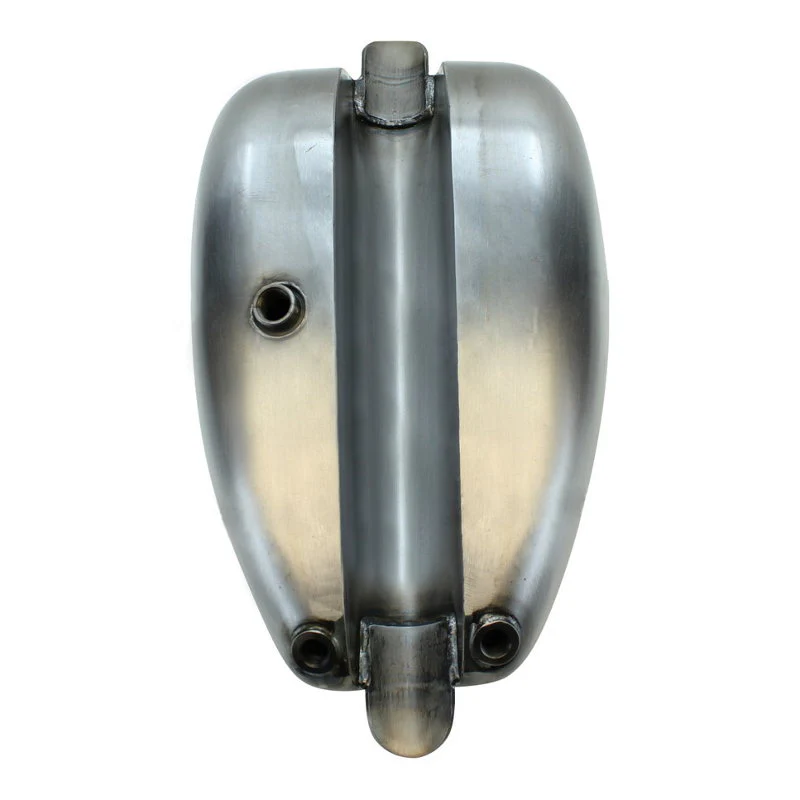

• Threaded ports to accept either 3/8" petcock or 1/4" petcock
  • Unused port(s) will need to be plugged; plugs available separately
• Tongue-type mounts

• 2-1/8" wide tunnel
• 17" tab-to-tab
• 8-1/2" W at widest point
• Available in choice of tunnel style

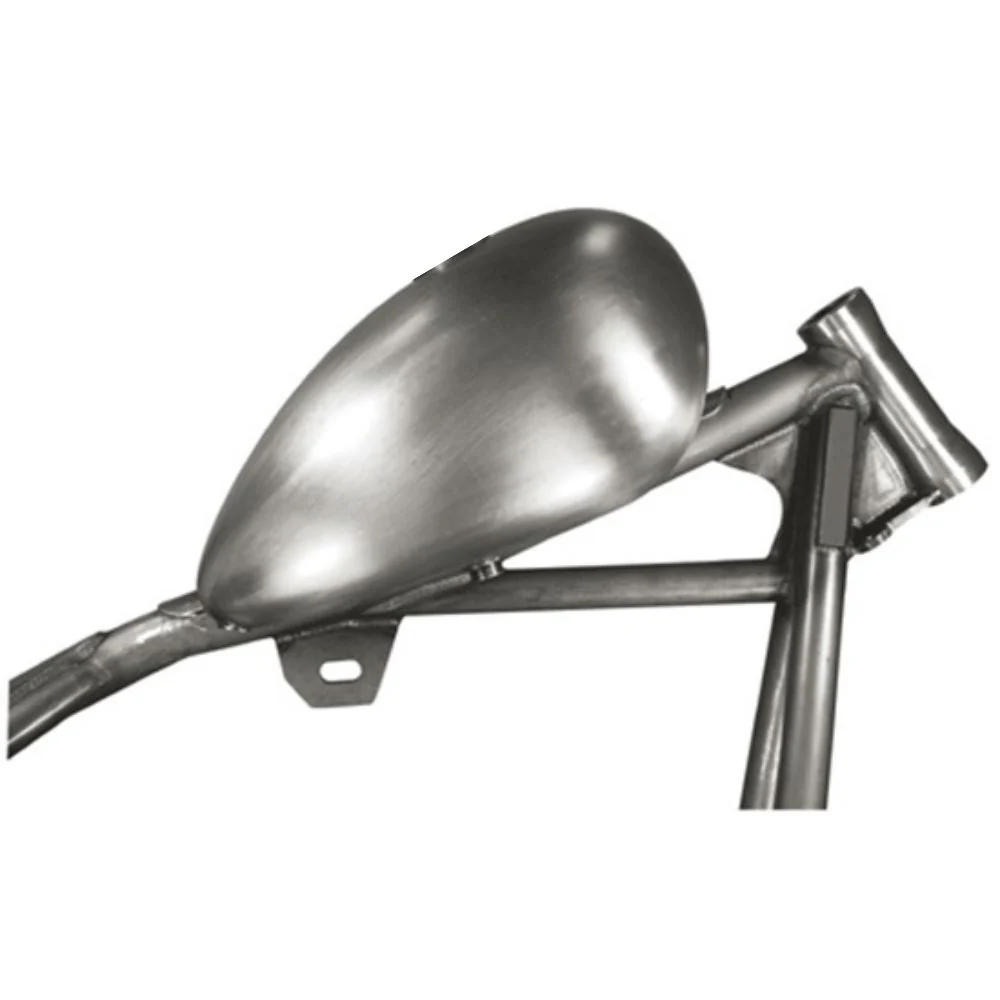

  • High tunnel tank is 2" deep at the rear, increasing to 6" at the front; the lobes of the tank will straddle your backbone; 2 gallon capacity

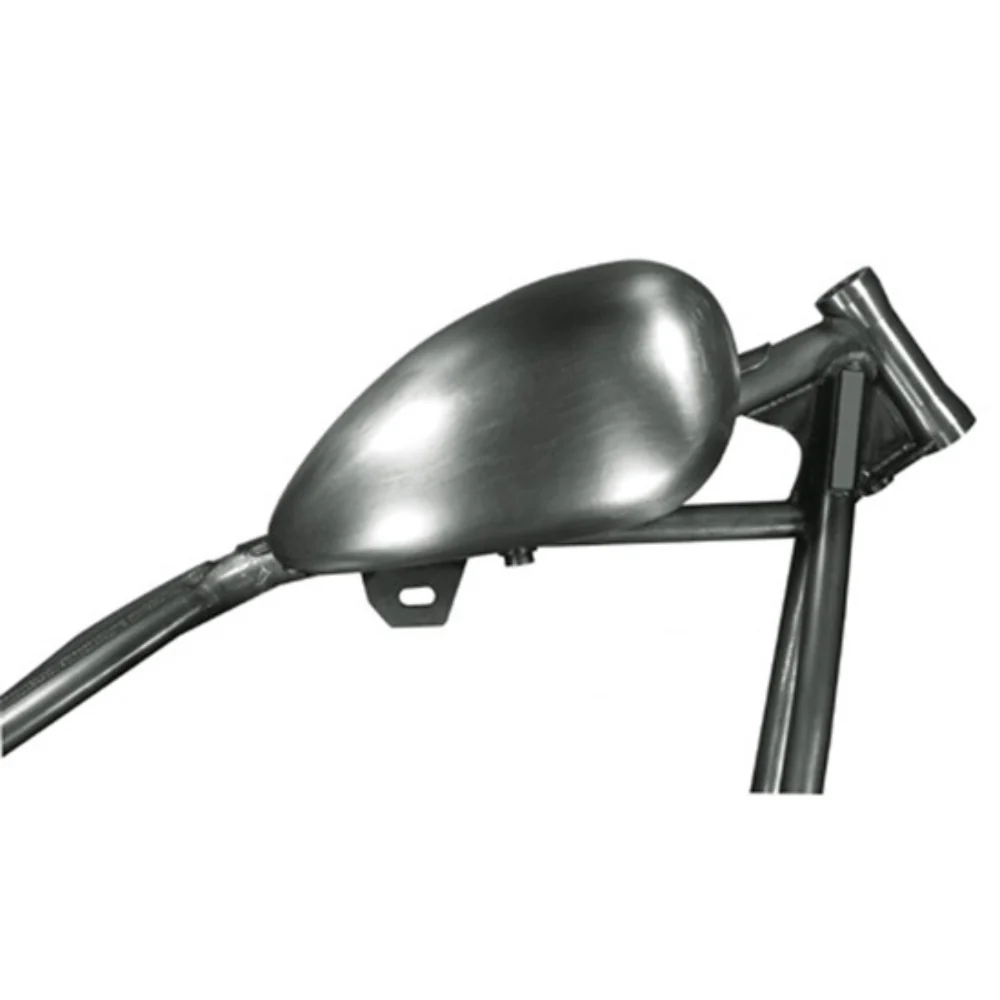

  • Mid tunnel tank is 2" deep at the rear, increasing to 4" at the front; the tank will sit (obviously) between the High and Low tunnel versions; 2.1 gallon capacity

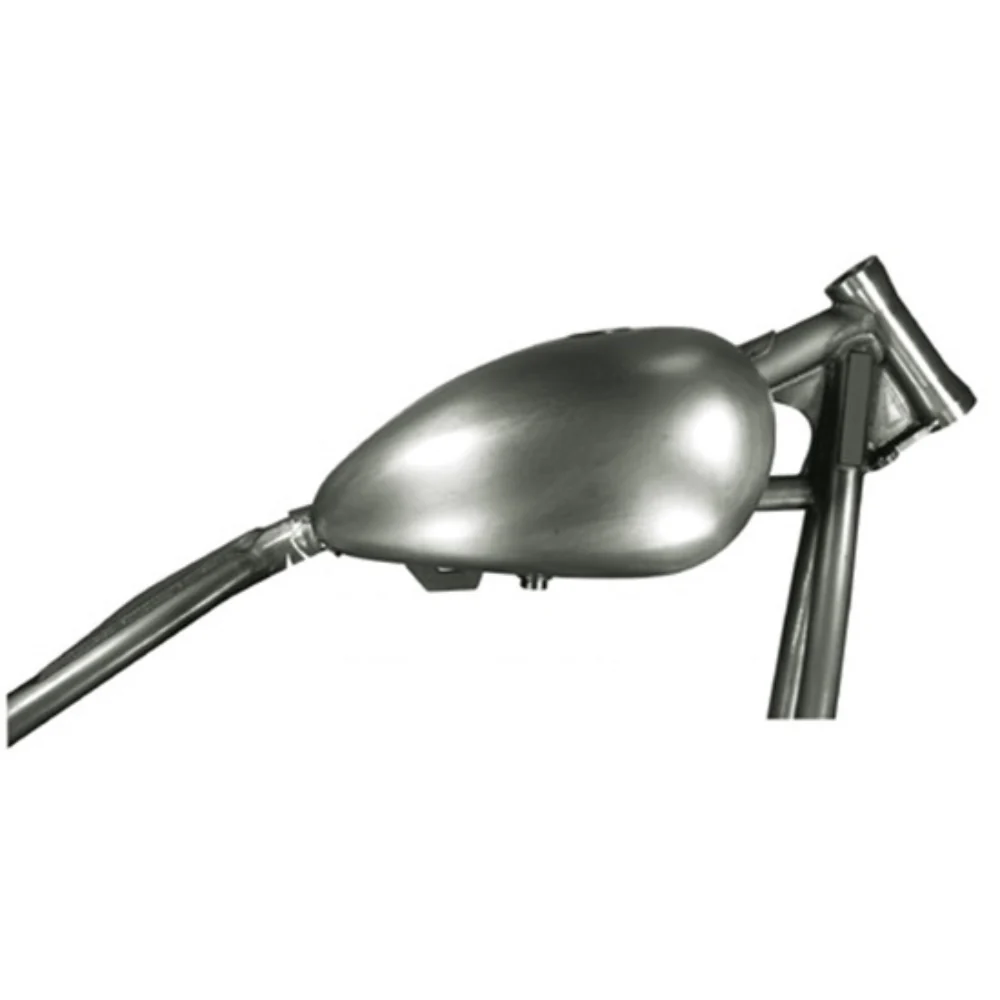

  • Low tunnel tank is 2" deep; the base of the tank will sit approximately even with the centerline of your backbone; 2.3 gallon capacity

Though these tanks are pressure tested from the factory, pressure testing before applying filler or paint is standard practice. If needed, you may elect to seal with a tank sealer before painting. For the same reason, we encourage thorough, solid mounting—stress on the tank or mounting hardware will eventually lead to cracks.
